Gas Pump Woodworking Plans

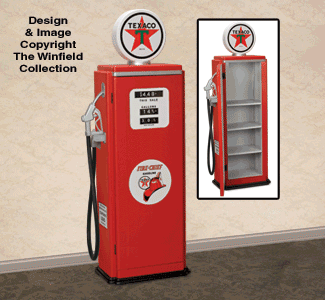

Our unique gas pump project looks like the real deal but, of course, it doesn't pump any gas. It does, however, make quite an eye-catching outdoor display or one-of-a-kind storage cabinet for your garage, rec room or man cave.

Our easy-to-use woodworking plans show you how to make both the indoor and outdoor versions of our gas pump. They include full-size patterns for all curved pieces, step-by-step instructions, assembly diagrams, board layouts, a list of materials and more......everything you'll need to make your project go smoothly.

Our Gas Pump Project uses our Hardware and Hose Kits, your choice of authentic Decal Kits, all available below, plus two pieces of Acrylic (#PLEXCL2). (24" wide x 69" tall x 16" deep)

Note: Clark, Gulf, Shell, Sinclair Dino and 76 globe decals are also available on this website. For a guide on installing decals,search this site for "decal instructions".

More Info

Wood:
3/4" and 1/4" thick exterior grade plywood
Common 1" and 2" pine boards

Winfield Parts and Supplies:
#CARB (transfer paper)
#PLEXCL2 (quantity 2 plexiglas panels)
#W1668KIT (Gas Pump Hardware Kit)
W1668KIT2 (Hose Kit)
W1668DK1 (Texaco Decal Kit)
W1688DK2 (Mobilgas Decal Kit)

Tools:
Table Saw, Circular Saw and Hand-held sabre saw
Router with round over, cove and rabbetting bits
Heat Gun and Clamps

Paints:
PP07 Geranium Red
PP14 Cloud White
PP21 Wrought Iron Black

Sealer: High-grade, non-yellowing, semi-gloss UV protected project sealer for outdoor protection (#POLYQT) or the indoor version (#INDRQT).
